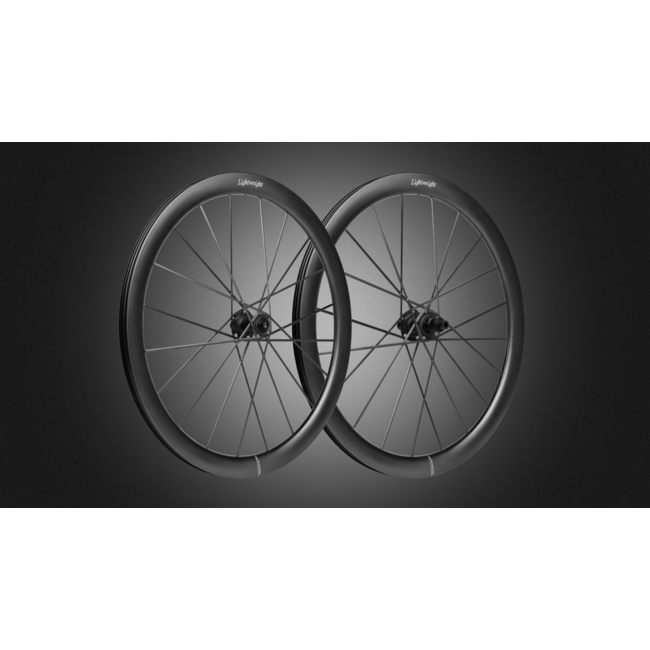

Lightweight Meilenstein Art Disc Wheelset Tubeless

Black Edition is complete black and included Ceramicspeed bearings.

At CycleXclusive, we proudly introduce the Lightweight MEILENSTEIN ART – the new benchmark in high-performance carbon wheels. After nearly four years of focused development, every detail has been rethought, rebuilt, and perfected to deliver the ultimate combination of aerodynamics, stiffness, and weight reduction.

At the heart of the MEILENSTEIN ART is Alpha Rib Technology (ART), a patented internal rib structure that creates a wider, more aerodynamic rim profile, while increasing stiffness and minimizing weight. This innovation results in unrivaled power transfer, precision handling, and speed – built for riders who demand the absolute best.

Why Choose MEILENSTEIN ART from CycleXclusive?

• Cutting-edge Alpha Rib Technology for exceptional stiffness and control.

• Next-generation aerodynamics, optimized for 28 mm+ tires.

• Tubeless Ready for low rolling resistance and grip.

• Handcrafted in Germany, ensuring the highest quality standards.

Advanced Materials & Sustainability

RCT – Reusable Core Technology

The hollow rim with its integrated rib structure is made using removable core technology. A specially designed core, wrapped with carbon fibers and resin, forms the exact internal geometry for maximum stiffness and strength. Once cured, the core is removed and recycled, ensuring precision manufacturing while reducing waste.

LCC – Lightweight Custom Composite

LCC is a proprietary composite technology designed for minimum weight and maximum performance. Each carbon layer is meticulously placed for optimal stiffness, responsiveness, and durability, resulting in a tailor-made high-performance ride feel.

Technical Specifications

• Wheelset Weight: 1,190 g (+/- 3%)

  • Front Wheel: 550 g

  • Rear Wheel: 640 g

• Rim Depth: 45 mm

• Internal Width: 22.9 mm

• External Width: 28.6 mm

• Rim Design: 700C | Hooked | Closed Rim Bed

• Optimized Tire Size: 28 mm+

• Tire Type: Tubeless Ready

• Spokes: 20 Full-Carbon (Front/Rear)

• Hub: Penta-Fly | DT SWISS EXP 180

• Freehub Systems: Shimano | Sram | Campagnolo

• Brake System: Disc Centerlock

• Axle Spacing: 12x100 | 12x142

Versions

• Standard: Lightweight Silver decals with steel bearings.

• Schwarz ED: Lightweight Black decals with CeramicSpeed bearings for superior efficiency.

Additional Details

• Max System Weight: 120 kg

• Warranty: 5 years

• Scope of Delivery: Tubeless valves, tire levers, lockrings.
